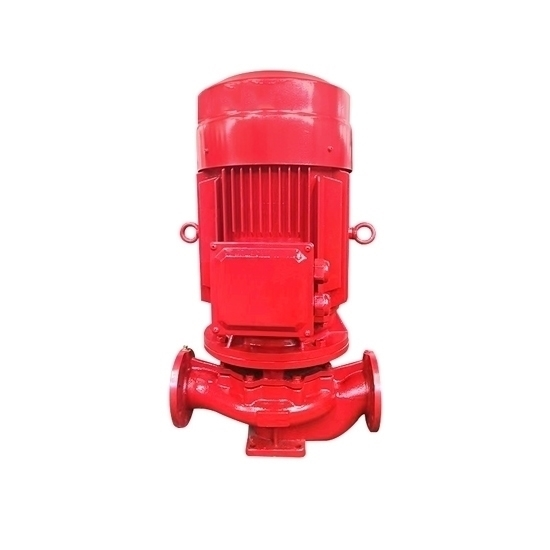

50 HP (37 kW) Single Stage Fire Pump
| Model | ATO-XBD12.5/15G-80-315 |
|---|---|
| Power | 50 hp (37 kW) |
| Flow Rate | 35m³/h |
| Rotating Speed | 2900 r/min |
50 HP (37 kW) Single Stage Fire Pump Introduction
A 50 hp fire pump is a high capacity water pump designed to provide a powerful and reliable water flow for firefighting systems. Fire fighting water pump is equipped with a mounting base, easy to install, increase the stability of the pump operation.
Features:
- Fire pump is compact in structure and small in size.
- Pump inlet and outlet are horizontal direction, simplifying the connection of the pipeline.
- Pump rotor has small winding, stable operation, small vibration, long service life.
Specification:
- Model: ATO-XBD12.5/15G-80-315
- Power: 50 hp (37 kW)
- Number of Stage: single stage
- Voltage: 380V (other voltage, please contact us)
- Caliber: 80 mm
- Flow Rate: 35m³/h
- Head of Pump: 128m
- Rotating Speed: 2900 r/min
Structure:
Tips: How to Choose Fire Pump?
- Determine the required flow rate. The first step in choosing a fire pump is to determine the required flow rate of water. This can be done by calculating the size of the building or area to be protected, and the type of fire hazards involved.
- Consider the water source. The water source is also an important factor to consider. If the water supply is limited, a high-pressure pump may be necessary. If the water supply is unreliable, a backup pump or water storage tank may be required.
- Determine the power source. Fire pumps can be powered by electric motors or diesel engines. The power source selected will depend on the availability of electricity and the reliability of the fuel supply.
