Product Description

Anchor Winche 134-0127 (Formerly EZ-1 Ez Anchor Puller) is proud to introduce our new  line of Direct Drive (Power Down Anchor Drop) Drum Anchor Winches. The strongest most durable drum style anchoring systems available worldwide, PATRIOT Series Drum Anchor Winches are made of 316 stainless steel construction.

The Anchor Winche 134-0127 series drum anchor winches raise the bar and set a new standard in anchoring systems using ultra-high-strength materials with efficient, simple, and robust design technology. From the company with the world’s first anchor winch in 1990, we are proud to have the first 316 stainless steel motor body with patented internal condensation mitigation and pre-rigged with twin leads for easy installation with a submersible waterproof IP68 rating.

Deepwater anchoring is a breeze with the Anchor Winche 134-0127 series optional Electronic Fast Fall system. After a quick 2 second push of the lower button, the patented Electronic Fast Fall controller which is an electronic voltage booster doubles the voltage which also doubles the speed of the motor allowing the anchor to faster fall during anchor deployment at twice the speed of the retrieval time. Once your anchor line is fully deployed you don’t need to tie off to a cleat the Anchor Winche 134-0127 will hold the boat at anchor. To retrieve your anchor line and anchor, hold the raise button until the anchor is out of the water and against the bow roller.

Anchor Winche 134-0127 Series Drum Anchor Winches are equipped with an emergency drive key release that allows the driveshaft to free spin and spool out the anchor line in the unforeseen case of power loss or faulty wiring/electronics.

Stronger & Faster than the competition, the Anchor Winche 134-0127 Series Drum Anchor Winches offer unmatched performance and reliability. From small recreational boats to Commercial Vessels to 55ft, there Anchor Winche Drum Anchor Winch just right for your boat and backed by our famous 7 + Life Warranty.

What’s Included?

Anchor Winche 134-0127 Series Anchor Winches are Supplied with:

• 316 Stainless Steel with Brushed Finish for Salt Water
• Direct Drive – Power Down Anchor Drop
• 12 Volt, 720w Permanent Magnet Electric Motor
• Electronics Package – (1) Forward & Reversing Waterproof solenoid, (1) Momentary Rocker Switch, (1) 60 AMP Switchable / Waterproof Circuit Breaker,
• 316 Stainless Steel Guide Roller
• All-in-one Emergency Drive Key
• 1/4” – Aluminum Backing Plate
• All Stainless Nuts, Bolts, & Washers Needed for Installation
• Installation Instructions & Service Manual
• 7 + Life Warranty Information

Available Options:
Patented Electronic Fast Fall Controller with 25’ of Remote Control Cable, Waterproof Momentary Rocker Switch, and Wireless Remote.

Specification

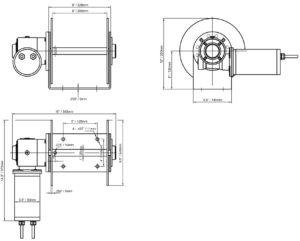

Dimension
