Wafer Type Butterfly Valve

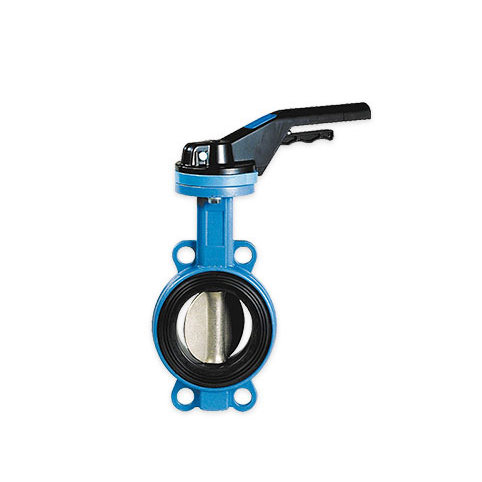

EN593 PN10/PN16/PN25/Class 125/Wafer Type Butterfly Valve With PINS

Category Tag
Medium

Water
Standard

EN593/AWWA C504/MSS SP-67
Pressure

CLASS 125-300/PN10-25/200-300PSI
Material

CI,DI
Quick Inquiry

EN593 PN10/PN16/PN25/Class 125/Wafer Type Butterfly Valve With PINS Introduction

Specification

Part Name Material
Body DI
Seat NBR
Disc Plated Ductile Iron
Shaft ASTM A276 416
Middle Bearing F4
O Ring NBR
Pin ASTM A276 416

Dimensions Data

H ΦE ΦF N-ΦK Φd G EN1092-2 PN10 EN1092-2 PN16 ANSI CLASS 125
ΦD n-Φd1 n-M ΦD n-Φd1 n-M ΦD n-Φd1 n-M
32 90 50 4-Φ7 12.6 9.5 110 4-Φ19 4-M16 110 4-Φ19 4-M16 98.5 4-Φ16 4-1/2″
32 90 50 4-Φ7 12.6 9.5 125 4-Φ19 4-M16 125 4-Φ19 4-M16 120.5 4-Φ19 4-5/8″
32 90 50 4-Φ7 12.6 9.5 145 4-Φ19 4-M16 145 4-Φ19 4-M16 139.5 4-Φ19 4-5/8″
32 90 50 4-Φ7 12.6 9.5 160 8-Φ19 8-M16 160 8-Φ19 8-M16 152.5 4-Φ19 4-5/8″
32 90 70 4-Φ10 15.8 11.1 180 8-Φ19 8-M16 180 8-Φ19 8-M16 190.5 8-Φ19 8-5/8″
32 90 70 4-Φ10 18.92 12.7 210 8-Φ19 8-M16 210 8-Φ19 8-M16 216 8-Φ22 8-3/4″
32 90 70 4-Φ10 18.92 12.7 240 8-Φ23 8-M20 240 8-Φ23 8-M20 241.5 8-Φ22 8-3/4″
45 125 102 4-Φ12 22.1 15.9 295 8-Φ23 8-M20 295 12-Φ23 12-M20 298.5 8-Φ22 8-3/4″
45 125 102 4-Φ12 28.45 22 350 12-Φ23 12-M20 355 12-Φ28 12-M24 362 12-Φ25 12-7/8″
45 150 125 4-Φ14 31.6 24 400 12-Φ23 12-M20 410 12-Φ28 12-M24 432 12-Φ25 12-7/8″
45 150 125 4-Φ14 31.6 24 460 16-Φ23 16-M20 470 16-Φ28 16-M24 476 12-Φ29 12-1″
50 150 125 4-Φ14 33.15 27 515 16-Φ28 16-M24 525 16-Φ31 16-M27 539.5 16-Φ29 16-1″
50 210 140 4-Φ18 37.95 27 565 20-Φ28 20-M24 585 20-Φ31 20-M27 578 16-Φ32 16-1 1/8“
60 210 140 4-Φ18 41.12 32 620 20-Φ28 20-M24 650 20-Φ34 20-M31 635 20-Φ32 20-1 1/8“
70 210 165 4-Φ22 50.62 36 725 20-Φ31 20-M27 770 20-Φ37 20-M33 749.5 20-Φ35 20-1 1/4“
72 300 254 8-Φ18 63.35 KEY 2-18 840 24-Φ31 24-M27 840 24-Φ37 24-M33 863.6 28-Φ35 28-1 1/4“
100 300 254 8-Φ18 63.35 KEY 2-18 950 24-Φ34 20-M30 950 24-Φ41 20-M36 977.9 28-Φ41 28-1 1/2“
