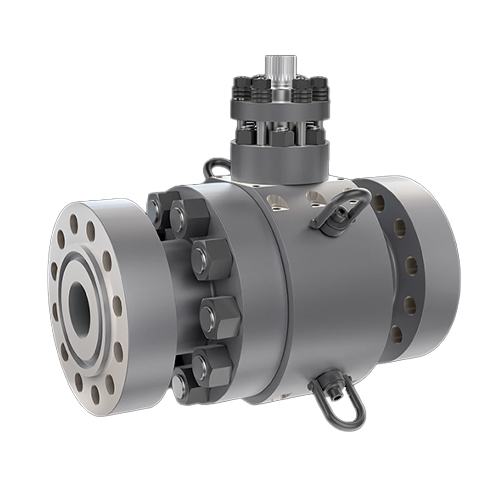

Floating Ball Valve
| Superior Shutoff | Gas-tight sealing |
|---|---|
| Fastest Purge | 60 – 90 s |
| Field Maintenance | Modular trim |
Floating Ball Valve Introduction
Features and Benefits
- Reliable Sealing – The ball valve features metal-seated, hard-faced seat rings and spring components that ensure a continuous and secure seal.
- Easy Maintenance – The stem and drive train can be replaced without needing to fully disassemble the valve, simplifying maintenance.
- Extended Durability – Made from corrosion- and erosion-resistant materials, with thermally sprayed coatings on the ball, seat rings, and springs to enhance longevity.
- Superior Stem Strength – The one-piece solid stem shaft is designed to withstand up to 200% of the operating pressure, providing exceptional durability.
Specification
Standards: API 608, ASME B16.34, ASME B16.10, API 598; ANSI Cl FCI 70.1 Class V & VI, API 607, ISO 158481-1, API 641, SIL, PED
Pressure Class Range: Class 150, 300, 600, 900, 1500, 2500
For Class 4500, please consult factory
Temperature: -29°C to 538°C (-50°F to 1,000°F)
Consult factory for temperatures above 538°C/1000°F
Size Range: NPS 1/2 to 36
Materials: Carbon Steel A105/A350 Grade LF2 / Stainless Steel A-182 F316/A182 F347H / Titanium / Duplex F51 / Inconel / Hastelloy
Other materials available on request, please consult factory.
Configuration
- Flow Direction Options – Available in uni-directional, bi-directional with preferred pressure direction, or bi-directional (upon request) configurations.
- Purge System Innovation – The unique purge system prevents valve lock-up, significantly reducing the costs of purging valves in severe service conditions.
- Custom Coatings – HVOF and Spray & Fused coatings offer tailored solutions, leveraging our in-house coating and automated lapping capabilities for enhanced performance.
Application Industries
Power
- Conventional Steam
- Combined Cycle
- Concentrated Solar Power (CSP)
Chemicals
- Basic (Organic & Inorganic)
- Specialty (Fine & Consumer)
- Petrochemicals
Oil & Gas
- Upstream Exploration & Production
General Industries
- Mining
- Hydrogen
Built for the toughest applications, this metal-seated floating ball valve is the ideal choice for scenarios requiring reliable, tight shut-off and uncompromising metal sealing. It is designed for high-pressure, high-temperature (HPHT) severe service applications across various industries. This valve is perfect for processes where hydrocarbons are converted into gas, diesel, jet fuel, or other upgraded products, as well as other extreme applications such as superheated steam, abrasive media, coking, mining, and power generation, among others.
