Lined Ball Valve Introduction
Features and Benefits
- Reliable Sealing – Achieves bubble-tight shut-off across a pressure range of 1 to 19 bar (14.5 to 275 psi), enhancing process efficiency and performance.
- Superior Leak Protection – PTFE chevron packing rings in a deep stuffing box ensure long-term external leak prevention.
- Enhanced Durability – Thick, securely bonded liner on all coated components, validated through high-voltage inspection for maximum integrity.
- Easy Installation – ASME-compliant dimensions allow seamless replacement of existing valves without modifying piping.
- Built for Safety – Features a blowout-proof stem assembly and an anti-static device for added reliability.
- Optional V-Port Design – Available as a V-port ball valve for precise modulating control in various applications.
Specification
- DIN EN 558
- DIN EN 1092-2
- ASME B16.5
Size Range:
- 1/2″ – 4″
- DN 15 – DN 100
Pressure Class Range: DIN PN 10 -16, ASME Class 150
Seating Material:
- PTFE
- PTFE-glass-reinforced
- PTFE-conductive
Application Industries
- Chemicals
-
- Basic (Organic & Inorganic)
- Specialty (Fine & Consumer)
- Petrochemicals
- Oil & Gas
- Downstream Processing

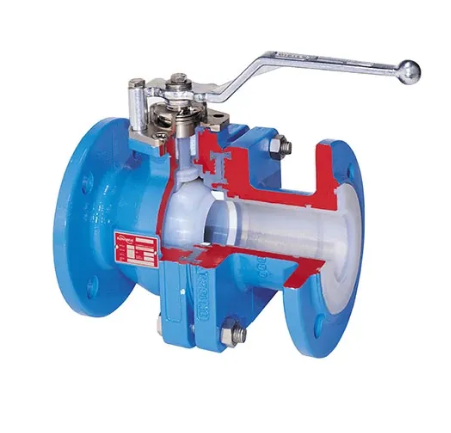

The AKH2.2 Lined Full Port Ball Valve is a two-piece lined ball valve which offers high safety factors, high stability, rigidity and eliminates a potential leak path.
