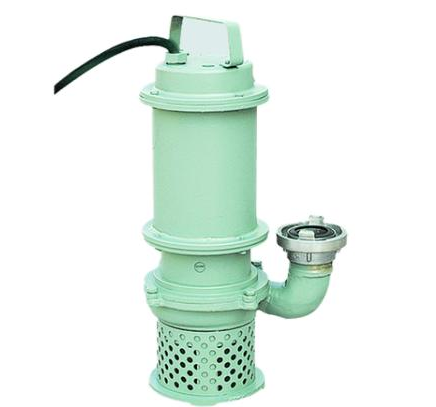

Marine Submersible Electric Pump
| Flow Rate (m³/h) | 10-630 |
|---|---|
| Head (m) | 16-15 |
| Voltage (V) | 380 |
| Power (kW) | 1.1-45 |
Marine Submersible Electric Pump Introduction
Specification
| Model | Flow Rate (m³/h) | Head (m) | Speed (r/min) | Power (kW) | Voltage (V) | Outlet Diameter (mm) |
|---|---|---|---|---|---|---|
| CQX10-16-1.1 (YBH-20) | 10 | 16 | 2950 | 1.1 | 380 | G2″ |
| CQX30-20-3 | 30 | 20 | 2900 | 3 | 380 | G2 1/2″ |
| CQX40-15-4 | 40 | 15 | 2900 | 4 | 380 | G2 1/2″ |
| CQX100-20-15 | 100 | 20 | 1450 | 15 | 380 | 100 |
| CQX200-20-22 | 200 | 20 | 1450 | 22 | 380 | 150 |
| CQX315-10-15 | 315 | 10 | 1450 | 15 | 380 | 200 |
| CQX630-15-280 | 630 | 15 | 1450 | 45 | 380 | 200 |
Marine submersible electric pumps are compact, lightweight, easy to move, and simple to install, requiring no priming before operation. They are primarily used for emergency lifesaving on ships and for bilge water drainage. Additionally, they can be used for industrial water tower supply and agricultural irrigation and drainage.
