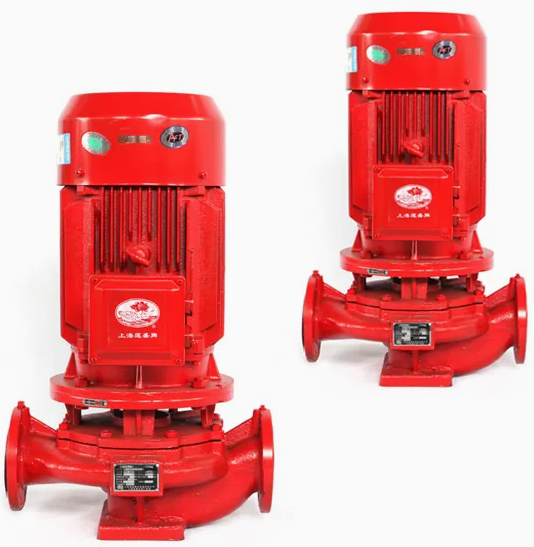

Vertical Fire Fighting Pump with Electric Motor Drive
| Customization | Available |
|---|---|
| Max.Head | 110m-150m |
| Max.Capacity | >400 L/min |
Vertical Fire Fighting Pump with Electric Motor Drive Introduction
Product Introduction
1. Lian Sheng XBD – ISG (ISW) type vertical fire pump single suction single stage and single suction multistage type two kinds, for the transport of water and physical and chemical properties not containing solid particles similar to the use of liquid water.
2. Mainly used for pressurized water supply in fire control system, can also be used in factories and mines, water supply and drainage.
3. Transport of liquid flow rate range of 5 ~ 80L / s,
4. The pressure range of 0.2 ~ 2.25MPa,
5. Supporting the power range of 1.5~200kW,
6. The scope of diameter 50 ~ 250mm.
Product Features
1 pump has the advantages of compact structure, small volume, beautiful appearance, its vertical structure decided to install a small area, center of gravity into the center of the foot pump, thus enhancing the operation stability and service life of the pump.
2 pump inlet and outlet are horizontal, which has simplified the connection of pipeline.
3 stage type according to the need, inlet and outlet can be installed to the same direction or 90., 180., 270. Several different directions to meet different connection conditions.
4 pump pressure can be added or deleted pump series and cutting impeller diameter to be met, without changing the installation area, this is other pumps do not have.
Around 5 pump rotor with smaller, stable running, small vibration, low noise, long service life.
Key Specification
| Impeller Number | Single-Stage Pump | Driving Type | Motor |
| Influent Type of Impeller | Single Suction Pump | Working Pressure | High Pressure Pump |
| Pump Casing Combined | Verticaljoint Surface Pump | Position of Pump Shaft | Vertical Pump |
| Impeller | Closed | Mounting Height | Suction Centrifugal |
| Materials | Stainless Steel | Usage | Pumps |
| Specification | CE | Transport Package | Wood Box |
| Production Capacity | 20000 | Trademark | Liansheng or OEM |
Product Uses
XBD ISG (ISW) fire pumps are mainly used for pressurized water supply pipeline fire control system. Can also be used for industrial and city water supply and drainage, pressurized water supply in high-rise constructions, distant distance water supply, heating boiler, cold and hot water circulation pressurization bathroom, air-conditioning refrigeration system water supply and equipment etc…
The Vertical Fire Fighting Pump with Electric Motor Drive is designed for high-performance fire suppression in industrial settings. Featuring a single-stage, high-pressure design, it utilizes a closed impeller made from durable stainless steel for maximum efficiency and reliability. The pump is built to withstand harsh conditions, ensuring optimal operation during emergencies. CE certified for quality assurance, this pump is ideal for a wide range of fire protection applications, offering consistent and reliable performance when it matters most.
